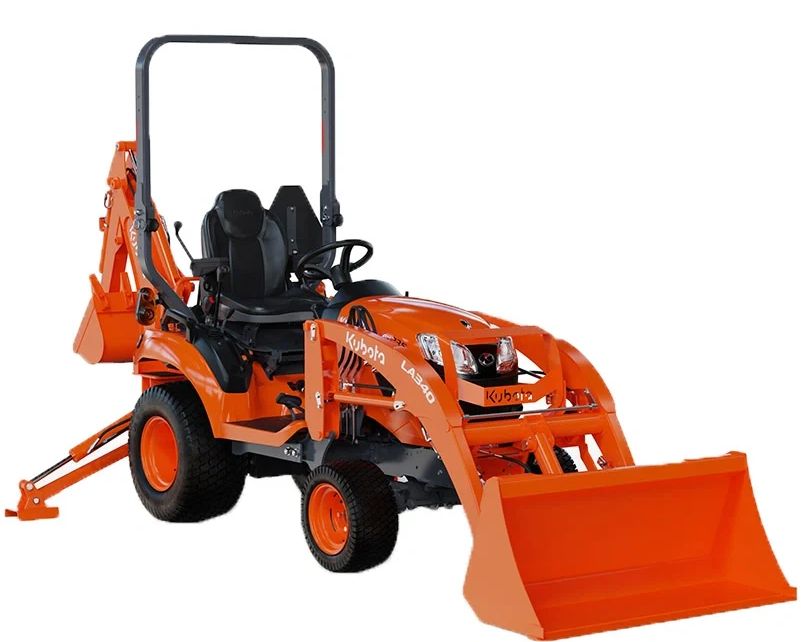

Kubota Bx23s Backhoe Mini size
Tractor weight (w/ROPS): 1570 lb.
Lift capacity is 613 lbs
2-Foot flat digging depth 72.4 inches 183 cm
Reach from pivot 97.8 inches 248 cm
Loading height 64.2 inches 163 cm
Kubota B2601 Mid-Size Backhoe
Weight: 1632 lbs [740 kg]
Wheelbase: 61.4 inches [155 cm]
Length: 94.5 inches [240 cm]
Width: 49 inches [124 cm] *
Height (ROPS): 85 inches [215 cm]
Ground clearance:12.8 inches [32 cm]
Turning Radius feet (m) 6.9 (2.1)
Able to lift 948 lbs to a max height of 78.5” with a dump clearance of 61.7”
Kubota KL2501 Backhoe Larger
Weight: 2425 lbs [1099 kg]
Wheelbase: 63.3 inches [160 cm]
Length: 110.6 inches [280 cm]
Width: 55.1 inches [139 cm]
Height (ROPS): 91.7 inches [232 cm]
2WD Ground clearance: 13.6 inches [34 cm]
4WD Ground clearance: 13.4 inches [34 cm]
Front tread: 41.3 inches [104 cm]
Lift to full height (at pin): 1131 lbs [513 kg]
John Deere 310SG Full Size Backhoe
Bucket Dig Force 11990 lbs (5,439 kg)
Bucket Dig Force - Extended - 12158 lbs
Dig Depth- 14.5 ft (4 m)
Bucket Breakout Force 10210 lbs (4,631 kg)
Bucket Capacity 1.3 cu yds (1 m)
Bucket Width 92 in (234 cm)
Clearance at Max Dump Height 11.2 ft (3 m)
Dig Depth 5.8 in (15 cm)
Reach at Max Dump Height 3 ft (1 m)
JOHN DEERE 410G BACKHOE LOADER
Bucket Dig Force - Extended 14801 lbs (6,714 kg)
Dig Depth 15.9 ft (5 m)
Dig Depth - Extended 20.5 ft (6 m)
Load Height 23.4 ft (7 m)
Load Height - Extended 15.5 ft (5 m)
Reach at Load Height - Extended 27.4 ft (8 m)
Bucket Breakout Force 10210 lbs (4,631 kg)
Bucket Capacity 1.3 cu yds (1 m)
Bucket Width 36 in (91 cm)
